Ego8 Full Release Pics and Specs inside

#1 User is offline   blackraven64

  • What more do you want?
  • PipPipPipPipPip
  • Group: Members
  • Posts: 1,967
  • Joined: 06-October 05
  • Gender:Male
  • Location:Ocala,Florida
  • Brigade Name:BlackRaven

Posted 11 October 2007 - 05:24 AM

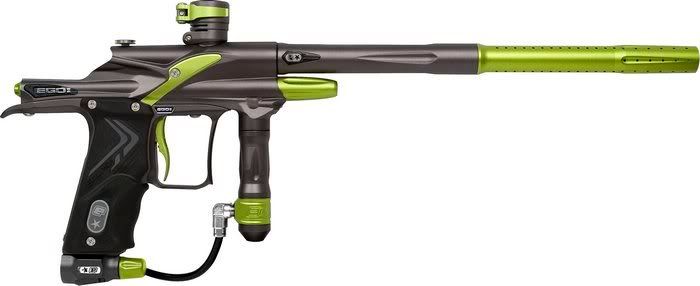

Posted Image

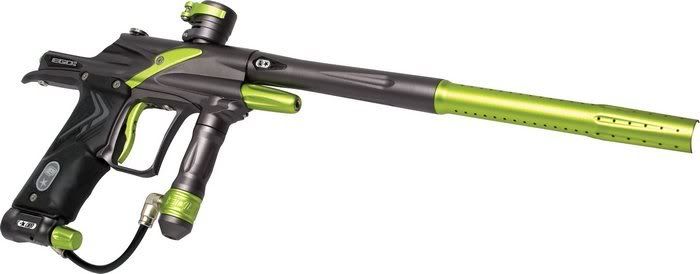

Posted Image
Posted Image

Quote

In late 2006 Planet Eclipse unveiled, to much public and critical acclaim, the new Ego7. Derived from the operating principles of the previous two Egos, the Ego7 demonstrated a new direction for the brand, redefining the standards that players should accept for performance, reliability, durability, weight and ergonomics. Add to that list peerless Customer Service and uber-simple user-maintenance, and the complete package becomes a formidable prospect.
This year the Ego8 will push these boundaries even further, by building on the already impressive platform of the Ego7, drawing on some of the experience gained from the highly-developed SL74, and moulding all the entities into a new marker with devastating effect.

Open up the glossy clam-shell packaging “Pod” and it is clear that the Ego8 has retained all of the Egos visual traits. Aggressively angled eye covers, sleek sculpted lines and comfortable proportions. Yet the profile has been reduced again, with the rear “hook”, or heal of the frame moved up closer to the firing-line of the upper bore and barrel, and the whole frame raised up. This makes the gun feel even more “pointy” as the hand comes up even closer to the sighting-line of the barrel. This closeness of hand to the axis of the barrel gives a feeling of directness that is often lost in the design of most markers, making the Ego8 feel, more than ever, like an extension of your arm.
The placement of the front frame screw to inside the trigger guard for the first time as well as a change to shorter frame screws has resulted in a smaller profile directly behind the FRM as well as more finger room between the FRM and trigger guard. In moving the frame up into the body, it has also allowed a flanged fitment between body and frame, which prevents ingress of dirt and paint, and aligns the 2 parts better for a superior fit.

Inside the trigger guard is a re-worked SL74 style trigger. A modification to the bearing carrier has allowed the fitment of a larger magnet which provides a greater range of adjustment for the trigger return force. The front trigger stop point has also been re-designed so that the complete trigger set-up can also be achieved with the frame removed from the marker body.

One of the main features of the Ego8 that has enabled the reduction in body/frame profile and allowed the rear of the frame to come closer to the barrel axis is the development of a completely new QEV assembly. This new Q-Block assembly has been designed from the ground up to offer unparalleled Quick Exhausting performance for both the fore and aft ports of the Rammer. Combined into one, small, low-profile block. Dual QEVs release used and unwanted gas from the Rammer chamber directly to atmosphere without having to pass through any restrictions such as threaded banjo screws, hollow bolts, solenoid or hosing. The Q-Block is fully strippable without tools, allowing quick access to the diaphragms for cleaning and maintenance.
Just above, and being fed by the Q-Block, the Ego8 houses the Rammer. The Ego8 has borrowed technology directly from the SL74 of last season, and incorporates the highly effective Zick Kit (Zero Kick) Rammer system. Thought of by most as just a one-trick feature, the Zick technology actually offers exceptionally low kick, but also combines it with super-gentle paintball acceleration. This feature, when combined with the standard Cure Bolt system, enables the Ego8 to shoot the most fragile tournament paint available with awesome accuracy with virtually zero barrel lift even at the very highest rates of fire.

Also making the cross-over from the SL74 are both sets of regulator internals. Where the LPR retains its dual gold-spring operation, it now includes the industrial hard anodised 7000 series grade aluminium piston assembly. In the Inline regulator the alterations have been even more radical, with the inclusion of not just the light-weight aluminium piston, but also the adoption of the coil spring design from the SL. This new design not only produces a lighter and more simple-to-maintain regulator, but also offers superior performance in every way over the old Bellville Spring Stack design. The new spring design offers quicker and more accurate recovery after every shot, and the single coil spring means that maintenance and lubrication of the inline regulator is easier and quicker, with no Bellville shims to lose or incorrectly orientate. A real win-win situation for this particular upgrade.

The Ego8 also sees a change to the valve guide and internal bore geometry. With requests for quieter and quieter shot characteristics, without the compromise of reduced air efficiency, the Ego8 incorporates a new “stepped” valve design. It was found in testing that most high end guns actually produce virtually identical decibel readings when firing a paintball. It is more the frequency-range produced by the shot that offended certain ears. By more tightly controlling the flow of air through and round the exhaust valve and valve guide we have attempted to reduce the higher, more irritating frequencies generated during firing, helping to reduced the perceived noise level. The real beauty of this new step valve design is that, together with the new Q-Block and Zick Rammer, the Ego8 has improved efficiency with reduced kick, increased rates of fire and quieter operation.

Of course the Ego8 has retained its full range of electronic features, including the revolutionary Dual Trigger Sensing (micro-switch and optoelectronic sensors) enabled board, the head-up LCD display in the rear of the frame, fully adjustable semi and ramp modes, user definable Debounce settings and presets, tournament preset modes and training modes. The LCD display has the capability to allow users to view game timer and alarms, shot counter, peak and average rates of fire, as well as access all adjustable parameters either through an internal set-up button, or when unlocked, directly from the rear user-interface buttons. For the Ego8 we have moved to a new Black on White LCD display that offers greater contrast to previous models. New icons and graphics in the user interface of the LCD have been improved, making them more legible in game-time scenarios. The Ego8 board also has a new “Auxiliary Output” port that allows direct control and drive of aftermarket hardware such as the Pulse loader. Secondarily to that there is also interfacing on the board for the addition of expansion-board accessories, such as an audible game timer beeper.

Other aftermarket accessories that will be available from launch besides the Beeper board will be CCU kits and Laser Eyes. All 3 of these accessories are retro-fittable from Ego7 to Ego8, making them readily available in dealers around the globe right now. Aurora CCU kit on an Ego8 anyone?

And of course the launch of a new Ego wouldn’t be the same without a mention of its vital statistics: If you go out and play with the Ego8, come back in from the field, pull off the loader, unscrew the tank, and drop the gun onto the digital scales the Ego8 weighs in at a staggeringly low 906g. That’s under the 2lb mark, fully laden, ready to play. No tricks, no special light weight batteries, or missing parts, just as it comes out of the box, with barrel, On/Off/Purge system and all.

So as the evolution of the Ego continues, are we getting any nearer to the perfect marker? Well, with the modifications and improvements that have been worked into the Ego8, combined with the customer support, attention to detail, and customer driven direction that Planet Eclipse continues relentlessly to pursue it would be difficult to concede an area of this product that could be considered less than class-leading.

Does that make it the ultimate all-round package? Try it. You decide.

Technical Specifications
All Weights and Measurements Include 14” Shaft II Barrel, On/Off/Purge System, Battery etc. Fully Set-Up Ready to Go:

Length: 531mm
Height: 216mm
Width: 26mm
Weight: 906g / 1.99 lbs

Feature List

Ultra-Lightweight Monoform Body
Deftek Offset Feed Tube
Flush-Fitting Eye Covers
Integrated Rammer Housing
Integrated FRM
Cure Bolt
Zick Rammer and Rammer Cap
Stepped Valve Chamber and Valve Guide
High-Flow Valve
Q-Block – New 1-Piece Dual QEV block
Light-weight Aluminium Regulator Pistons
Superior Coil Spring Regulator Design
Dual Trigger Sensing Board
Dual Instrument Grade Ball-Raced Trigger
Magnetic Trigger Return
Skinny-Fit Co-Moulded Rubber E-Star Grips
T-Slot Rail Mounting System
Major Tournament Preset Modes
Capped and Uncapped Semi and Ramping Modes
9 Debounce Modes
Direct-Acting Solenoid
Black-on-White Transflective LCD Display
Swivel In-Line Regulator
Lever Operated Clamping Feed
Shaft II 2-Piece 14” 0.693” Barrel
On/Off/Purge System
Lower Cyclic Mass
Less Kick
Quieter Shot
Improved Efficiency
Low Profile Break-Beam Eyes
New Clam-Shell packaging
Tool Tube Hex Key Set

0

#2 User is offline   French

  • Group:Banned
  • PipPipPipPipPipPipPip
  • Group: Members
  • Posts: 6,333
  • Joined: 05-November 06
  • Gender:Male
  • Location:Mississauga.ont CANADA
  • Brigade Name:QC MAD KID

Posted 11 October 2007 - 12:13 PM

not much different than the 07
INFLUENCE 09 Vaughan Vipers RXL 2k10
WARNING HEAVY METAL click me /Here my feedback
Tdot feedback Group banned# 13 MCB feedback
0

#3 User is offline   heisman01

  • "the appraiser"
  • PipPipPipPipPip
  • Group: Members
  • Posts: 1,652
  • Joined: 19-November 05
  • Gender:Male
  • Location:lawrenceburg IN
  • Brigade Name:heisman01

Posted 11 October 2007 - 01:43 PM

theres not really much left for them to take off
0

#4 User is offline   Aim for the trash

  • Not my name?
  • PipPipPipPipPip
  • Group: Members
  • Posts: 1,716
  • Joined: 03-September 06
  • Gender:Male
  • Location:Savannah, GA
  • Brigade Name:REMOVED AS INAPPROPRIATE

Posted 11 October 2007 - 01:46 PM

And the difference is...?

All these egos look the same these days.

If I would afford it I would pass...

Lol, i want a blazer.
You have failed as a paintballer.
Special Ops Feedback M. Carter Brown feedback
Dirty quotes get you warned. Dang it Mike.
0

#5 User is offline   blackraven64

  • What more do you want?
  • PipPipPipPipPip
  • Group: Members
  • Posts: 1,967
  • Joined: 06-October 05
  • Gender:Male
  • Location:Ocala,Florida
  • Brigade Name:BlackRaven

Posted 11 October 2007 - 02:54 PM

the differences are
-milling
-New qevs
-zick kit stock
-new valve design
Nothing too major imo.

I honestly don't know why i bothered to post a page worth of specs if people are still going to ask "What's the difference"
0

#6 User is offline   The Hobbit

  • Formerly Shadowlord
  • PipPipPipPipPipPip
  • Group: Members
  • Posts: 4,078
  • Joined: 15-November 05
  • Gender:Male
  • Location:Western PA

Posted 11 October 2007 - 04:36 PM

I like the new milling but would still go with an 05 or 06 over it until the price drops come.
http://www.pbnation....videos/view/40/ a vid I found on PBN

This post has been edited by Shadowlord: 11 October 2007 - 04:47 PM

Posted Image
0

#7 User is offline   DZ Unit-1

  • Cacophony Pony
  • PipPipPipPipPip
  • Group: Members
  • Posts: 1,262
  • Joined: 01-April 07
  • Gender:Female
  • Brigade Name:DZ Unit-1

Posted 11 October 2007 - 04:57 PM

well, atleast the sales of the 7's will increase
Posted Image
"and DZ, I love that pic so much. If you were a girl, and not just a dude who looked like a girl, I would kiss you." mrwaterbuffalo, 1:17 AM "DZ, what are you?" -SnV- "He are legend." -Veritech Squad-
0

#8 User is offline   Ryan J.

  • Life begins at the break and ends at the 50.
  • PipPipPip
  • Group: Members
  • Posts: 270
  • Joined: 04-June 06
  • Location:Norwich
  • Brigade Name:TheJudge411

Posted 11 October 2007 - 05:05 PM

HAPPY SKIPPING JOYFUL PERSON
0

#9 User is offline   freak of nature

  • Does that cat have an ear missing?
  • PipPip
  • Group: Members
  • Posts: 171
  • Joined: 13-June 07
  • Gender:Male
  • Brigade Name:Freak_of_Nature

Posted 11 October 2007 - 05:35 PM

that looks like the etek im getting.....minus the green......
Before you judge a man, walk a mile in his shoes. After that, who cares? He's a mile away and you've got his shoes.
....Um, what? How can i have -2 messages?
Watch in order:Unsuccessful Procedure - Part 1, Unsuccessful Procedure - Part 2
0

#10 User is offline   willdunn

  • *INSERT CATCH PHRASE*
  • PipPipPipPip
  • Group: Members
  • Posts: 916
  • Joined: 19-December 06
  • Gender:Male
  • Location:Austin, Texas
  • Brigade Name:willdunn

Posted 11 October 2007 - 07:18 PM

how? I dont see the resembalence between an etek and the 08?
0

#11 User is offline   blackraven64

  • What more do you want?
  • PipPipPipPipPip
  • Group: Members
  • Posts: 1,967
  • Joined: 06-October 05
  • Gender:Male
  • Location:Ocala,Florida
  • Brigade Name:BlackRaven

Posted 11 October 2007 - 07:21 PM

View Postwilldunn, on Oct 11 2007, 10:18 PM, said:

how? I dont see the resembalence between an etek and the 08?

you've got to squint your eyes,cover a certain part and then turn the light low :(
0

#12 User is offline   willdunn

  • *INSERT CATCH PHRASE*
  • PipPipPipPip
  • Group: Members
  • Posts: 916
  • Joined: 19-December 06
  • Gender:Male
  • Location:Austin, Texas
  • Brigade Name:willdunn

Posted 11 October 2007 - 07:23 PM

he he he-then mill the hell out of it.
0

#13 User is offline   DZ Unit-1

  • Cacophony Pony
  • PipPipPipPipPip
  • Group: Members
  • Posts: 1,262
  • Joined: 01-April 07
  • Gender:Female
  • Brigade Name:DZ Unit-1

Posted 11 October 2007 - 07:34 PM

View Postfreak of nature, on Oct 11 2007, 05:35 PM, said:

that looks like the etek im getting.....minus the green......


geez, that looks alot like my old, long gone, stolen ego6 rather...:(
Posted Image
"and DZ, I love that pic so much. If you were a girl, and not just a dude who looked like a girl, I would kiss you." mrwaterbuffalo, 1:17 AM "DZ, what are you?" -SnV- "He are legend." -Veritech Squad-
0

#14 User is offline   freak of nature

  • Does that cat have an ear missing?
  • PipPip
  • Group: Members
  • Posts: 171
  • Joined: 13-June 07
  • Gender:Male
  • Brigade Name:Freak_of_Nature

Posted 11 October 2007 - 09:08 PM

whatever, im just saying that the back piece(not familiar with what its called) looks sort of like how its milled on the etek, meaning that its not milled as aggressivly as other egos i've seen (as far as i can tell)

EDIT: wow a guy cant even speak his mind without getting flamed....

This post has been edited by freak of nature: 11 October 2007 - 09:11 PM

Before you judge a man, walk a mile in his shoes. After that, who cares? He's a mile away and you've got his shoes.
....Um, what? How can i have -2 messages?
Watch in order:Unsuccessful Procedure - Part 1, Unsuccessful Procedure - Part 2
0

#15 User is offline   DZ Unit-1

  • Cacophony Pony
  • PipPipPipPipPip
  • Group: Members
  • Posts: 1,262
  • Joined: 01-April 07
  • Gender:Female
  • Brigade Name:DZ Unit-1

Posted 11 October 2007 - 09:16 PM

i don't see anyone flaming you dude, we're just :P lolz
in reality, all your egos and eteks are gonna look familiar and similiar to one another
Posted Image
"and DZ, I love that pic so much. If you were a girl, and not just a dude who looked like a girl, I would kiss you." mrwaterbuffalo, 1:17 AM "DZ, what are you?" -SnV- "He are legend." -Veritech Squad-
0
